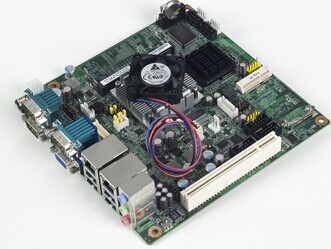

研华MiNi-ATX母板AIMB-212 Mini-ITX主板 工业主板AIMB-212

• 支持 Intel ® Atom N450 和 D510双核处理器
• 1个200针SODIMM ，高达2 GB DDR2 667 MHz SDRAM
• 支持 1个 PCI 和1个 Mini-PCIe扩展, 6个串行端口, 8个 USB和CF
• 低功耗，支持DC12V
• 支持嵌入式软件API和实用程序
•
• 研华MiNi-ATX母板AIMB-212参数介绍：

• 		AIMB-212D-S6A1E	AIMB-212N-S6A1E
  		Quote	Quote
  Expansion	Slots	PCI, Mini-PCIe	PCI, Mini-PCIe
  Form Factor	Form Factor	mini ITX	mini ITX
  Processor	CPU	Intel Atom D510	Intel Atom N450
  	CPU TDP	13 W	5.5 W
  	Frequency	1.66 GHz	1.6 GHz
  	Core Number	2	1
  	L2 Cache	1 MB	512 KB
  	BIOS	AMI PSI 16 Mbit	AMI PSI 16 Mbit
  	Chipset	Intel ICH8M	Intel ICH8M
  Memory	Technology	DDR2 667MHz	DDR2 667MHz
  	Max. Capacity	2 GB	2 GB
  	Socket	1 x 200-pin SODIMM	1 x 200-pin SODIMM
  Display	Controller	Intel Atom D510 intergrated	Intel Atom N450 intergrated
  	Video Interface	LVDS, VGA, Dual Display CRT+LVDS	LVDS, VGA, Dual Display CRT+LVDS
  	Graphic Memory	Share with system memory up to 224 MB	Share with system memory up to 224 MB
  	VGA	up to SXGA 2048 x 1536 @ 60Hz	up to SXGA 1400 x 1050 @ 60Hz
  	LCD (TTL/LVDS/eDP)	LVDS:single channel 18-bit up to WXGA 1366 x 768	LVDS:single channel 18-bit up to WXGA 1366 x 768
  	Multiple Display	Dual	Dual
  Expansion	Slot Type	1	1
  	PCI	1	1
  Ethernet	Controller	GbE1: Intel 82567V; GbE2: Intel 82583V	GbE1: Intel 82567V; GbE2: Intel 82583V
  	Speed	10/ 100/ 1000 Mbps	10/ 100/ 1000 Mbps
  	Connector	RJ45 x 2	RJ45 x 2
  Audio	Audio Interface	HD Audio	HD Audio
  	CODEC	Realtek ALC892, High Definition Audio (HD)	Realtek ALC892, High Definition Audio (HD)
  	Connector	3 (Mic-in, Line-out, Line-in)	3 (Mic-in, Line-out, Line-in)
  Watchdog Timer	WatchDog Timer	Yes	Yes
  Storage	SATA	2 x SATA II (Max. Data Transfer Rate 300 MB/s)	2 x SATA II (Max. Data Transfer Rate 300 MB/s)
  	CompactFlash	CompactFlash Type I/II	CompactFlash Type I/II
  I/O	USB2.0	8	8
  	GPIO	1	1
  	COM Port	6(5 x RS-232, 1 x RS-232/422/485)	6(5 x RS-232, 1 x RS-232/422/485)
  Power	Power Type	ATX, AT	ATX, AT
  	Connector	DC jack, internal 4pin	DC jack, internal 4pin
  	Power Adaptor	Yes	Yes
  Environment	Operational Temperature	0 ~ 60° C (32 ~ 140° F)	0 ~ 60° C (32 ~ 140° F)
  	Non-Operational Temperature	-40~ 85° C	-40~ 85° C
  	Vibration Resistance	3.5 Grms (non OP)	3.5 Grms (non OP)
  Physical	Dimension (mm)	170x 170 mm (without heatsink)	170x 170 mm (without heatsink)
  	Weight	1.04 kg (1.72 lb), weight of total package	1.04 kg (1.72 lb), weight of total package
  	Construction	with CPU cooler desing	with fanless design
  Operating System	Microsoft Windows	Yes	Yes
  	Linux	Yes	Yes
  	SUSIAccess	Yes	Yes
  Certification	EMC	CE, FCC	CE, FCC
