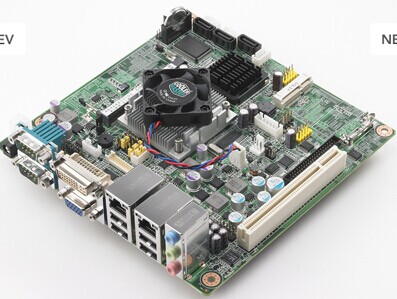

研华MINI-ITX工业母板AIMB-213 6个com口 双网卡主板：

搭载Intel® Atom™ N455/D525 的Mini-ITX主板，带CRT/DVI/LVDS显示输出，6个COM输出接口，双千兆网口

• 搭载Intel® Atom™ N455/D525 的Mini-ITX主板，带CRT/DVI/LVDS显示输出，6个COM输出接口，双千兆网口
• 研华MINI-ITX工业母板AIMB-213参数介绍：

• 		AIMB-213D-S6A1E	AIMB-213N-S6A1E
  		Price	Quote
  Expansion	Slots	PCI, Mini-PCIe	PCI, Mini-PCIe
  Form Factor	Form Factor	mini ITX	mini ITX
  Processor	CPU	Intel Atom D525	Intel Atom N455
  	CPU TDP	13 W	6.5 W
  	Frequency	1.80 GHz	1.66 GHz
  	Core Number	2	1
  	L2 Cache	1 MB	512 KB
  	BIOS	AMI SPI 16 Mbit	AMI SPI 16 Mbit
  	Chipset	Intel ICH8M	Intel ICH8M
  Memory	Technology	DDR3 800MHz	DDR3 800MHz
  	Max. Capacity	4 GB	4 GB
  	Socket	2 x 204 pin SODIMM	2 x 204 pin SODIMM
  Display	Controller	Intel Atom D525 intergrated	Intel Atom N455 intergrated
  	Graphic Memory	Share with system memory up to 224 MB	Share with system memory up to 224 MB
  	VGA	up to SXGA 2048 x 1536 @ 60Hz	up to SXGA 1400 x 1050 @ 60Hz
  	DDI (HDMI/DVI/DisplayPort)	DVI: up to UXGA 1600 x 1200 @ 60Hz	DVI: up to UXGA 1600 x 1200 @ 60Hz
  	LCD (TTL/LVDS/eDP)	LVDS: single channel 18/24-bit up to WXGA 1366 x 768	LVDS: single channel 18/24-bit up to WXGA 1366 x 768
  	Video Interface	VGA+DVI , VGA+LVDS	VGA+DVI , VGA+LVDS
  	Multiple Display	Dual	Dual
  Expansion	Slot Type	1	1
  	PCI	1	1
  Ethernet	Controller	GbE1: Intel 82567V, GbE2: Intel 82583V	GbE1: Intel 82567V, GbE2: Intel 82583V
  	Speed	10/ 100/ 1000 Mbps	10/ 100/ 1000 Mbps
  	Connector	RJ45 x 2	RJ45 x 2
  Audio	Audio Interface	HD Audio	HD Audio
  	CODEC	Realtek ALC892, High Definition Audio (HD)	Realtek ALC892, High Definition Audio (HD)
  	Connector	3 (Line-in, Line out, Mic-in)	3 (Line-in, Line out, Mic-in)
  Watchdog Timer	WatchDog Timer	Yes	Yes
  Storage	RAID	3 x SATA II (Max. Data Transfer Rate 300 MB/s)	3 x SATA II (Max. Data Transfer Rate 300 MB/s)
  	CompactFlash	CompactFlash Type I/II	CompactFlash Type I/II
  I/O	USB2.0	8	8
  	GPIO	1	1
  	COM Port	6(5 x RS-232, 1 x RS-232/422/485)	6(5 x RS-232, 1 x RS-232/422/485)
  	TPM	Yes
  Power	Power Type	ATX, AT	ATX, AT
  	Connector	DC jack, internal 4pin	DC jack, internal 4pin
  	Power Adaptor	Yes	Yes
  Environment	Operational Temperature	0 ~ 60° C (32 ~ 140° F)	0 ~ 60° C (32 ~ 140° F)
  	Non-Operational Temperature	-40~ 85° C	-40~ 85° C
  	Vibration Resistance	3.5 Grms (non OP)	3.5 Grms (non OP)
  Physical	Dimension (mm)	170x 170 mm (without heatsink)	170x 170 mm (without heatsink)
  	Weight	1.04 kg (1.72 lb), weight of total package	1.04 kg (1.72 lb), weight of total package
  	Construction	with CPU cooler design	with fanless design
  Operating System	Microsoft Windows	Yes	Yes
  	Linux	Yes	Yes
  	SUSIAccess	Yes	Yes
  Certification	EMC	CE, FCC	CE, FCC
