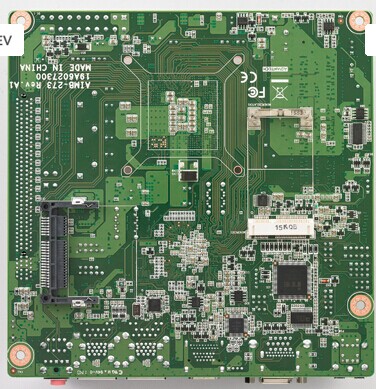

研华Mini-ITX主板AIMB-273 产品介绍:

| Expansion | Slots | PCIe x16, Mini-PCIe |
| Form Factor | Form Factor | mini ITX |
| Processor | CPU | Intel Core i7-3610QE / i7-2710QE / i5-3610ME / i5-2510E / i3-3120ME / i3-2330E / Celeron B810 |
| CPU TDP | 45 / 35 W | |
| Frequency | 2.3 / 2.1 / 2.7 / 2.5 / 2.4 / 2.2 / 1.6 GHz | |
| Core Number | 4 / 2 | |
| L3 Cache | 6 / 3 / 2 | |
| BIOS | AMI EFI 64 Mbit | |
| Chipset | Intel QM77 | |
| Memory | Technology | DDR3 1333 / 1600 MHz |
| Max. Capacity | 16 GB | |
| Socket | 2 x 204-pin SODIMM | |
| Display | Controller | Integrated Gfx Gen5.75 |
| Graphic Engine | DirectX 10 and OpenGL 2.1 support | |
| Graphic Memory | Share with system memory up to 2 GB | |
| VGA | up to 2048 x 1536 | |
| LCD (TTL/LVDS/eDP) | LVDS: Single channel 24-bit / dual channel 48-bit LVDS up to 1920 x 1080 | |
| DDI (HDMI/DVI/DisplayPort) | HDMI: 1650 Mbps / channel @ 165 MHz | |
| Multiple Display | Triple | |
| Expansion | PCI Express x 16 | 1 |
| Slot Type | 1 | |
| Ethernet | Controller | GbE1: Intel 82579LM, GbE2: Intel 82583V |
| Speed | 10/ 100/ 1000 Mbps | |
| Connector | RJ45 x 2 | |
| Audio | Audio Interface | HD Audio |
| CODEC | Realtek ALC892, High Definition Audio (HD) | |
| Connector | 3 (Mic-in, Line-out, Line-in) | |
| Watchdog Timer | WatchDog Timer | Yes |
| Storage | SATA | 2 x SATA 3 (Max. Data Transfer Rate 300 MB/s) |
| CFast | 1 | |
| I/O | USB3.0 | 4 |
| USB2.0 | 4 | |
| GPIO | 1 | |
| COM Port | 2 ( RS-232 ) | |
| TPM | Yes | |
| Power | Power Type | ATX, AT |
| Connector | ATX20P | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Non-Operational Temperature | -20~ 70° C | |
| Vibration Resistance | 3.5 Grms (non OP) | |
| Physical | Dimension (mm) | 170x 170 mm (without heatsink) |
| Weight | 1.04 kg (1.72 lb), weight of total package | |
| Construction | with CPU cooler design | |
| Operating System | Microsoft Windows | Yes |
| Linux | Yes | |
| SUSIAccess | Yes | |
| Certification | EMC | CE, FCC |
