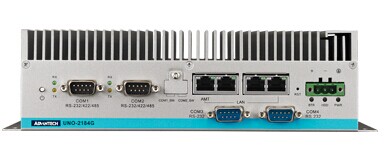

研华无风扇嵌入式工控机UNO-2184G1401E-E UNO-2184G1401E-T产品介绍：
| UNO2184G1401E-T | UNO-2184G-D44E | UNO-2184G-D45E | UNO-2184G-D64E | ||
|---|---|---|---|---|---|
| Environment | Humidity | 95% @ 40°C (non-condensing) | 95% @ 40°C (non-condensing) | 95% @ 40°C (non-condensing) | 95% @ 40°C (non-condensing) |
| Operating Temperature | -10 ~ 60°C (14 ~ 149°F) @ 5 ~ 85% RH. (with air flow) | -10 ~ 60°C (14 ~ 140°F) @ 5 ~ 85% RH. (with air flow) | -10 ~ 60°C (14 ~ 140°F) @ 5 ~ 85% RH. (with air flow) | -10 ~ 60°C (14 ~ 140°F) @ 5 ~ 85% RH. (with air flow) | |
| Shock Protection | IEC 60068-2-27, CompactFlash: 50 G @ wall mount, half sine, 11 ms, HDD: 20 G @ wall mount, half sine, 11 ms | IEC 60068-2-27, CompactFlash: 50 G @ wall mount, half sine, 11 ms, HDD: 20 G @ wall mount, half sine, 11 ms | IEC 60068-2-27, CompactFlash: 50 G @ wall mount, half sine, 11 ms, HDD: 20 G @ wall mount, half sine, 11 ms | IEC 60068-2-27, CompactFlash: 50 G @ wall mount, half sine, 11 ms, HDD: 20 G @ wall mount, half sine, 11 ms | |
| Storage Temperature | - | -40 ~ 60°C (-40~140°F) | -40 ~ 60°C (-40~140°F) | -40 ~ 60°C (-40~140°F) | |
| Vibration Protection | IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.), CompactFlash: 2 Grms @ 5 ~ 500 Hz, HDD: 1 Grms @ 5 ~ 500 Hz | IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.) HDD: 1 Grms @ 5 ~ 500 Hz | IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.) HDD: 1 Grms @ 5 ~ 500 Hz | IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.) HDD: 1 Grms @ 5 ~ 500 Hz | |
| I/O Interface | LAN | 2 x 10/100/1000Base-T RJ-45 ports, Supports wake on LAN and built-in boot ROM in flash BIOS | 4 x 10/100/1000Base-T RJ-45 ports, Supports AMT (UNO-2184G only), wake on LAN and built-in boot ROM in flash BIOS | 4 x 10/100/1000Base-T RJ-45 ports, Supports AMT (UNO-2184G only), wake on LAN and built-in boot ROM in flash BIOS | 4 x 10/100/1000Base-T RJ-45 ports, Supports AMT (UNO-2184G only), wake on LAN and built-in boot ROM in flash BIOS |
| General | Mounting | DIN-rail, Wallmount, VESA | DIN-rail, Wallmount, VESA | DIN-rail, Wallmount, VESA | DIN-rail, Wallmount, VESA |
| Power Consumption | 40 W (typical) | 40 W (typical) | 40 W (typical) | 40 W (typical) | |
| Certifications | CE, UL, CCC, FCC Class A, BSMI | CE, UL, CCC, FCC, C-Tick, BSMI | CE, UL, CCC, FCC, C-Tick, BSMI | CE, UL, CCC, FCC, C-Tick, BSMI | |
| Weight | 3.0 kg | 3.0 kg | 3.0 kg | 3.0 kg | |
| Dimensions | 255 x 152 x 69 mm (10" x 6.0" x 2.7") | 255 x 152 x 69 mm(10" x 6.0" x 2.7") | 255 x 152 x 69 mm(10" x 6.0" x 2.7") | 255 x 152 x 69 mm (10" x 6.0" x 2.7") | |
| Enclosure Housing | Aluminum | Aluminum | Aluminum | Aluminum | |
| OS Support | Windows XP/7, WES7, WES-2009 | Windows XP/7, WES7, WES-2009, Linux | Windows XP/7, WES7, WES-2009, Linux | Windows XP/7, WES7, WES-2009, Linux | |
| Power Requirement | 9 ~ 36 VDC (e.g +24V @ 3A) (Min. 72W), AT/ATX | 9 ~ 36 VDC (e.g +24V @ 3A) (Min. 72W), AT/ATX | 9 ~ 36 VDC (e.g +24V @ 3A) (Min. 72W), AT/ATX | 9 ~ 36 VDC (e.g +24V @ 3A) (Min. 72W), AT/ATX | |
| System Design | Fanless with no internal cabling | Fanless with no internal cabling (except COM3/COM4) | Fanless with no internal cabling (except COM3/COM4) | Fanless with no internal cabling (except COM3/COM4) | |
| Remote Management | Built-in Advantech DiagAnywhere agent on WES2009 / WES7 | Built-in Advantech DiagAnywhere agent on WES2009 / WES7 | Built-in Advantech DiagAnywhere agent on WES2009 / WES7 | Built-in Advantech DiagAnywhere agent on WES2009 / WES7 | |
| System Hardware | CPU | Intel Core i3-3217UE 1.60GHz (3M Cache) | Intel Core i7-2655LE 2.2 GHz | Intel Core i7-2655LE 2.2 GHz | Intel Core i7-3555LE 2.5GHz |
| Memory | 2 GB DDR3 SDRAM built-in | 4 GB DDR3 SDRAM built-in | 8 GB DDR3 SDRAM built-in | 4 GB DDR3 SDRAM built-in | |
| Storage | CF: 1 x CFast slot, HDD: One built-in 2.5" SATA HDD bracket, (2 x HDD by project support) | CF: 1 x CFast slot, HDD: One built-in 2.5" SATA HDD bracket(Optional 2 x HDD Bracket Kit) | CF: 1 x CFast slot, HDD: One built-in 2.5" SATA HDD bracket(Optional 2 x HDD Bracket Kit) | CF: 1 x CFast slot, HDD: One built-in 2.5" SATA HDD bracket(Optional 2 x HDD Bracket Kit) | |
| Keyboard/Mouse Ports | 1 x PS/2 | 1 x PS/2 | 1 x PS/2 | 1 x PS/2 | |
| Audio | - | Mic in, Line in, Line out | Mic in, Line in, Line out | Mic in, Line in, Line out | |
| Display | 1x DVI-I, 1x HDMI display | 1 x DVI-I, 1 x HDMI, 1 x DP (2 x independent displays) | 1 x DVI-I, 1 x HDMI, 1 x DP (2 x independent displays) | 1 x DVI-I, 1 x HDMI, 1 x DP (2 x independent displays) | |
| Processor System | Watchdog Timer | - | Programmable 256 levels timer interval, from 1 to 255 sec | Programmable 256 levels timer interval, from 1 to 255 sec | Programmable 256 levels timer interval, from 1 to 255 sec |
| System Hardware | Indicators | LEDs for Power, battery, LAN (Active, Status) and Serial (Tx, Rx) | LEDs for Power, battery, LAN (Active, Status) and Serial (Tx, Rx) | LEDs for Power, battery, LAN (Active, Status) and Serial (Tx, Rx) | LEDs for Power, battery, LAN (Active, Status) and Serial (Tx, Rx) |
| Mini PCIe Expansion | 1x Mini PCIe socket | 2 x Mini PCIe slots with 1 x SIM card | 2 x Mini PCIe slots with 1 x SIM card | 2 x Mini PCIe slots with 1 x SIM card | |
| I/O Interface | Serial Ports | 2 x RS-232/422/485 with DB9 connectors; automatic RS-485 data flow control | 2 x RS-232, 2 x RS-232/422/485 with DB9 connectors Automatic RS-485 data flow control | 2 x RS-232, 2 x RS-232/422/485 with DB9 connectors Automatic RS-485 data flow control | 2 x RS-232, 2 x RS-232/422/485 with DB9 connectors Automatic RS-485 data flow control |
| USB | 6 x USB 2.0 | 6 x USB 2.0 | 6 x USB 2.0 | 6 x USB (only UNO-2184G-D64E supports 2 x USB3.0) | |
