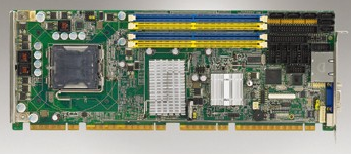

一、研华工控机PCE-5124|cpu全长卡|带VGA双千兆网口|6串口 产品介绍：
1、符合PICMG 1.3标准
2、支持LGA 775IntelConre 2 Quad处理器，支持FSB1333MHz
3、支持双通道DDR2 667/800 SDRAM,高可达8 GB
4、1个PC Iex16 and 和4个xl 位于无源地板上
5、通过2个PC Iexl插槽支持双千兆位以太网
6、支持6串口
7、6SATA2端口，支持S/W SATA Raid 0,1,10,5
二、研华工控PCE-5124|cpu全长卡|带VGA双千兆网口|6串口产品参数介绍：
LGA775 Intel® Core™ 2 Quad SHB带 VGA/双千兆网口/6 串口
| PCE-5124G2-00A1E | PCE-5124VG-00A1E | ||
|---|---|---|---|
|
Quote
Build
|
Quote
Build
|
||
| Form Factor | Form Factor | PICMG1.3 | PICMG1.3 |
| Processor System | CPU | Intel Core 2 Quad | Intel Core 2 Quad |
| CPU TDP | Up to 95 W | Up to 95 W | |
| Frequency | Up to 3.33 GHz | Up to 3.33 GHz | |
| Core Number | 4 | 4 | |
| L2 Cache | 12MB | 12MB | |
| L3 Cache | - | - | |
| BIOS | 2 x AMI 16 Mbit | 2 x AMI 16 Mbit | |
| Chipset | Intel Q35 + ICH9DO | Intel Q35 + ICH9DO | |
| Integrated Graphics | - | - | |
| FSB | 800/1066/1333 MHz | 800/1066/1333 MHz | |
| Memory | Technology | DDR2 667/800 MHz | DDR2 667/800 MHz |
| Capacity | Up to 8GB | Up to 8GB | |
| ECC Support | - | - | |
| Socket | 4 x 240-pin DIMM | 4 x 240-pin DIMM | |
| Display | Controller | Intel GMA 3100 Integrated | Intel GMA 3100 Integrated |
| Graphic Memory | Shared with system memory up to 384MB | Shared with system memory up to 384MB | |
| Multiple Display | - | - | |
| Display Interface | VGA: Up to 2048 x 1536 | - | |
| Expansion Interface | PCI Express x 16 | 1 | 1 |
| PCI Express x 4 | 1 | 1 | |
| PCI | 4 | 4 | |
| Ethernet | Controller | LAN1: Intel 82566DM LAN2: Intel 82573V | LAN1: Intel 82566DM LAN2: Intel 82573V |
| Speed | 10/100/1000 Mbps | 10/100/1000 Mbps | |
| Connector | 2 x RJ45 | 2 x RJ45 | |
| WatchDog Timer | Output | System Reset | System Reset |
| Interval | Programmable 1~255 sec | Programmable 1~255 sec | |
| Storage | CFast | - | - |
| CompactFlash | - | - | |
| I/O | SATA | 6 x SATA II (Raid 0, 1, 5, 10) | 6 x SATA II (Raid 0, 1, 5, 10) |
| IDE | - | - | |
| Floppy | 1 | 1 | |
| USB2.0 | - | - | |
| USB3.0 | 8 | 8 | |
| GPIO | - | - | |
| LPT | 1 | 1 | |
| COM Port | 6 (1 x RS485, 5 x RS232) | 6 (1 x RS485, 5 x RS232) | |
| PS/2 Keyboard/Mouse | 1 | 1 | |
| System Fan | 1 | 1 | |
| Rear I/O Interface | USB2.0 | - | - |
| COM | - | - | |
| PS/2 | 2 (1 x Keyboard, 1 x Mouse) | 2 (1 x Keyboard, 1 x Mouse) | |
| Ethernet | 2 | 2 | |
| VGA | 1 | 1 | |
| Power Requirement | Voltage | +12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V | +12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V |
| Current | 6.78A/4.06A/2.72A/0.43A/0A/0A | 6.78A/4.06A/2.72A/0.43A/0A/0A | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -40~ 85° C and 60° C @ 95% RH Non-Condensing | -40~ 85° C and 60° C @ 95% RH Non-Condensing | |
| Non-Operating Vibration | 2 Grms | 2 Grms | |
| Physical Characteristics | Dimensions (LxW) | 338 x 122 mm (13.3" x 4.8") | 338 x 122 mm (13.3" x 4.8") |
| Weight | 0.5 kg | 0.5 kg | |
| Certification | EMC | CE, FCC | CE, FCC |
| Management Solution | Out of band remote management | AMT3.0 | AMT |
