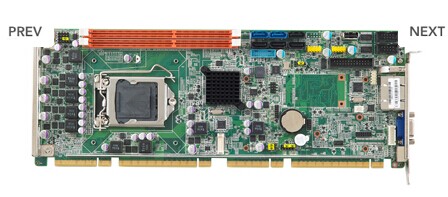

研华嵌入式系统单板电脑| PICMG 1.3系统主机板PCE-5026
LGA1155英特尔®酷睿i7/酷睿i5/酷睿i3 SHB DDR3/ SATA2.0/单千兆以太网
| PCE-5026VG-00A1E | ||
|---|---|---|
|
Quote
|
||
| Form Factor | Form Factor | PICMG1.3 |
| Processor System | CPU | Intel Core i3/i5/i7 |
| CPU TDP | Up to 95 W | |
| Frequency | Up to 3.4 GHz | |
| Core Number | 4 | |
| L2 Cache | - | |
| L3 Cache | 8MB | |
| BIOS | AMI 64 Mbit | |
| Chipset | Intel H61 | |
| Integrated Graphics | Yes | |
| FSB | - | |
| Memory | Technology | DDR3 1066/1333/1600 MHz |
| Capacity | Up to 16GB | |
| ECC Support | - | |
| Socket | 1 x 240-pin DDR3 | |
| Display | Controller | Intel HD graphics Integrated |
| Graphic Memory | Shared with system memory up to 1GB | |
| Multiple Display | - | |
| Display Interface | VGA: Up to 2048 x 1536 | |
| Expansion Interface | PCI Express x 16 | 1 |
| PCI Express x 4 | 1 | |
| PCI | 4 | |
| Ethernet | Controller | LAN1: Intel 82579V |
| Speed | 10/100/1000 Mbps | |
| Connector | 2 x RJ45 | |
| WatchDog Timer | Output | System Reset |
| Interval | Programmable 1~255 sec | |
| Storage | CFast | - |
| CompactFlash | - | |
| I/O | SATA | 4 x SATA II |
| IDE | - | |
| Floppy | - | |
| USB2.0 | - | |
| USB3.0 | 10 | |
| GPIO | 8-bit | |
| LPT | 1 | |
| COM Port | 2 x RS232 | |
| PS/2 Keyboard/Mouse | 1 | |
| System Fan | 1 | |
| Rear I/O Interface | USB2.0 | - |
| COM | 1 x RS232 | |
| PS/2 | 2 (1 x Keyboard, 1 x Mouse) | |
| Ethernet | 1 | |
| VGA | 1 | |
| Power Requirement | Voltage | +12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V |
| Current | 6.65A/1.62A/1.98A/0.73A/0.13A/0A | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -40~ 85° C and 60° C @ 95% RH Non-Condensing | |
| Non-Operating Vibration | 2 Grms | |
| Physical Characteristics | Dimensions (LxW) | 338 x 122 mm (13.3" x 4.8") |
| Weight | 0.5 kg | |
| Certification | EMC | CE, FCC |
| Management Solution | Out of band remote management | - |
