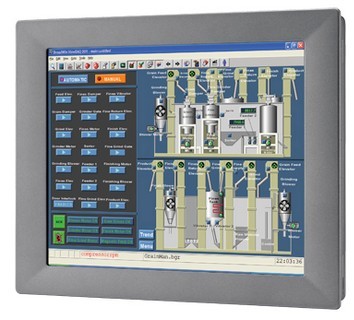

研华TPC-1550H-N2AE|研华TPC-1550H-N2BE平板电脑产品介绍：
| TPC-1550H-N2AE | TPC-1550H-N2BE | ||||
|---|---|---|---|---|---|
| Display | Backlight Life (hours) | 50,000 hrs | |||
| Contrast Ratio | 700 : 1 | ||||
| Luminance (cd/m2) | 350 | ||||
| Max. Colors | 262 K | ||||
| Max. Resolution | 1024 x 768 | ||||
| Size | 15" | ||||
| Type | XGA TFT LCD | ||||
| Viewing Angle (H, V) | 160/140 | ||||
| Environment | Humidity | 10 ~ 95% RH @ 40° C, non-condensing | 10 ~ 95% RH @ 40° C, non-condensing | ||
| Ingress Protection | Front panel: NEMA4, IP65 | Front panel: NEMA4, IP65 | |||
| Operating Temperature | 0 ~ 45° C (32 ~ 113° F) | 0 ~ 45° C (32 ~ 113° F) | |||
| Storage Temperature | -20 ~ 60° C (-4 ~ 140° F) | -20 ~ 60° C (-4 ~ 140° F) | |||
| Vibration Protection | 2 Grms (5 ~ 500 Hz) | 2 Grms (5 ~ 500 Hz) | |||
| General | BIOS | Award® 4 MB | Award® 4 MB | ||
| Certifications | BSMI, CCC, CE, FCC, UL | BSMI, CCC, CE, FCC Class A, UL | |||
| Cooling System | Fanless design | Fanless design | |||
| Dimensions (W x H x D) | 383 x 307 x 58.1 mm (15.08" x 12.09" x 2.29") | 383 x 307 x 58.1 mm (15.08" x 12.09" x 2.29") | |||
| Enclosure | Front bezel: Die-cast Aluminum alloy, Back housing: SECC | Front bezel: Die-cast Aluminum alloy, Back housing: SECC | |||
| Mounting | Desktop, Wall or Panel Mount | Desktop, Wall or Panel Mount | |||
| OS Support |
Windows XP/XPe,Windows CE 5.0/6.0 with Java Script, Linux with Firefox explorer and Java Script plugin |
Windows XP/XPe, Windows CE 5.0/6.0 with Java Script, Linux with Firefox explorer and Java Script plugin | |||
| Power Consumption | 40 W (typical) | 40 W (typical) | |||
| Power Input | 18 ~ 28 VDC | 18 ~ 28 VDC | |||
| Watchdog Timer | 1 ~ 255 sec (system) | 1 ~ 255 sec (system) | |||
| Weight (Net) | 3 kg (5.51 lb) | 3 kg (5.51 lb) | |||
| System Hardware | Chipset | Intel 945GSE + ICH7M | Intel Atom N270 1.6 GHz | ||
| CPU | Intel Atom 1.6 GHz | Intel Atom N270 1.6 GHz | |||
| I/O | RS-232 x 2 (COM1, 2), USB 2.0 x 2 (Host), PS/2 x 1 | RS-232 x 2 (COM1, 2), USB 2.0 x 2 (Host), PS/2 x 1 | |||
| LAN | 10/100/1000Base-T x 1 | 10/100/1000Base-T x 1 | |||
| Memory | 1GB SO-DIMM DDR2 533 SDRAM, Up to 2GB (One channel) | 1GB SO-DIMM DDR2 533 SDRAM, Up to 2GB (One channel) | |||
| Storage | CompactFlash® slot x 1 | CompactFlash® slot x 1 | |||
| Touchscreen | Ingress Protection | Front panel: NEMA4, IP65 | |||
| Lifespan | 1 million touches at single point | 10 million touches at single point | |||
| Light Transmission | Above 75% | ||||
| Resolution | Linearity | Linearity | |||
| Type | 5-wire, analog resistive | 5-wire, analog resistive | |||
| LCD Display | Backlight Life (hrs) | 50,000 hrs | |||
| Contrast Ratio | 700 : 1 | ||||
| Display Size | 15" | ||||
| Luminance (cd/m2) | 200 | ||||
| Max. Colors | 262 K | ||||
| Viewing Angle (H/V°) | 160/140 | ||||
| Max. Resolution | 1024 x 768 | ||||
| Display Type | XGA TFT LCD | ||||
15" XGA Touch Panel PC, Atom N270 1.6GHz, 1GB
|
|||
 |
|||
|
15" XGA Touch Panel PC, Atom N270 1.6GHz, 2GB
|
|||
