研华ATX工业母板AIMB-769,工业主板AIMB-769

发布时间:2014-08-10 22:09 作者:南京研维 阅读次数:

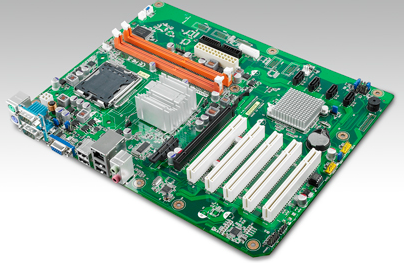

研华工控AIMB-769主板

一、研华工控机AIMB-769主板产品介绍:

  • Intel® G41芯片组,支持800/1066/1333 MHz FSB
  • 双通道DDR3 800/1066 SDRAM,最大支持4 GB
  • 芯片组板载VGA
  • 支持双核和四核处理器,45 nm 处理技术
  • 支持单10/100/1000 Mbps 以太网通过专属的PCIe x1 总线
  • LGA775 Intel 酷睿2四核ATX母板,支持VGA, 2 COM, 单LAN

二、研华工控AIMB-769主板产品参数介绍:

LGA775 Intel 酷睿2四核ATX母板,支持VGA, 2 COM, 单LAN





AIMB-769VG-00A1E

Quote
Build
Form Factor Form Factor ATX
Processor System CPU -
Frequency Up to 3.16 GHz
L2 Cache 12MB/6MB/8MB/512KB
L3 Cache -
BIOS AMI 16 Mbit SPI
Chipset Intel G41 + ICH7
Integrated Graphics Yes
FSB 800/1066/1333 MHz
Memory Technology DDR3 800/1066 MHz
Capacity Up to 4GB (2 GB per DIMM)
ECC Support -
Socket 2 x 240-pin UDIMM
Display Controller Intel GMA X4500 Integrated
Graphic Memory Share with system memory up to 352 MB
Multiple Display -
Display Interface VGA: Up to 2048 x 1536
Expansion Interface PCI Express x 16 1
PCI Express x 4 -
PCI Express x 1 1
PCI 5
LPC 1
Ethernet Controller LAN1: REALTEK RTL8111DL
Speed 10/100/1000 Base-T
Connector 1 x RJ45
WatchDog Timer Output System Reset
Interval Programmable 1~255 sec
I/O SATA 4 x SATA II
USB3.0 -
USB2.0 4
GPIO 8-bit
LPT -
COM Port -
PS/2 Keyboard/Mouse 1
SPDIF -
System Fan 2
Rear I/O Interface Display 1
USB3.0 -
USB2.0 4
COM 2 (2 x RS232)
PS/2 2(1 x keyboard and 1 x mouse)
Audio 2 (Mic-in, Line-out)
LPT -
DVI -
Ethernet 1
VGA 1
Physical Characteristics Dimensions (LxW) 304.8 x 244 mm (12" x 9.6")
Certification EMC CE, FCC
Management Solution Software SUSIAccess



LGA775 Intel 酷睿2四核ATX母板,支持VGA, 2 COM, 单LAN
