| Form Factor | Form Factor | ATX | ATX |
| Processor System | CPU | Intel Core 2 Quad | Intel Core 2 Quad |
| Frequency | Up to 3.0 GHz | Up to 3.0 GHz | |
| L2 Cache | 6MB/6MB/2MB/512KB | 6MB/6MB/2MB/512KB | |
| L3 Cache | - | - | |
| BIOS | AMI 32Mbit SPI | AMI 32Mbit SPI | |
| Chipset | Intel Q35 + ICH9 DO | Intel Q35 + ICH9 DO | |
| Integrated Graphics | Yes | Yes | |
| FSB | 800/1066/1333 MHz | 800/1066/1333 MHz | |
| Memory | Technology | DDR2 667/800 MHz | DDR2 667/800 MHz |
| Capacity | Up to 8 GB | Up to 8 GB | |
| ECC Support | - | - | |
| Socket | 4 x 240-pin UDIMM | 4 x 240-pin UDIMM | |
| Display | Controller | Intel GMA 3100 Integrated | Intel GMA 3100 Integrated |
| Graphic Memory | Share with system memory up to 384 MB | Share with system memory up to 384 MB | |
| Multiple Display | - | - | |
| Display Interface | VGA: Up to 2048 x 1536 | VGA: Up to 2048 x 1536 | |
| Expansion Interface | PCI Express x 16 | 1 | 1 |
| PCI Express x 4 | - | - | |
| PCI Express x 1 | 1 | 1 | |
| PCI | 5 | 5 | |
| LPC | 11 | 1 | |
| Ethernet | Controller | LAN1: Intel 82566DM LAN2: Intel 82573L | LAN1: Intel 82566DM |
| Speed | 10/100/1000 Base-T | 10/100/1000 Base-T | |
| Connector | 2 x RJ45 | 1 x RJ45 | |
| WatchDog Timer | Output | System Reset | System Reset |
| Interval | Programmable 1~255 sec | Programmable 1~255 sec | |
| I/O | SATA | 6 x SATA II (RAID 0, 1, 5, 10) | 6 x SATA II |
| USB3.0 | - | - | |
| USB2.0 | 8 | 8 | |
| GPIO | - | - | |
| LPT | - | - | |
| COM Port | 3 (2 x RS232, 1 x RS232/422/485) | 3 (2 x RS232, 1 x RS232/422/485) | |
| PS/2 Keyboard/Mouse | - | - | |
| SPDIF | - | 1 | |
| System Fan | 2 | 2 | |
| Rear I/O Interface | Display | 1 | 1 |
| USB3.0 | - | - | |
| USB2.0 | 4 | 4 | |
| COM | 1 (1 x RS232) | 1 (1 x RS232) | |
| PS/2 | 2(1 x keyboard and 1 x mouse) | 2(1 x keyboard and 1 x mouse) | |
| Audio | 2 (Mic-in, Line-out) | 2 (Mic-in, Line-out) | |
| LPT | 1 | 1 | |
| DVI | - | - | |
| Ethernet | 2 | 1 | |
| VGA | 1 | 1 | |
| Physical Characteristics | Dimensions (LxW) | 304.8 x 244 mm (12" x 9.6") | 304.8 x 244 mm (12" x 9.6") |
| Certification | EMC | CE, FCC | CE, FCC |
| Management Solution | Software | - | - |

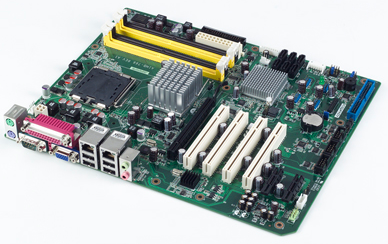

研华工控机主板AIMB-766|ATX工业母板 工业主板AIMB-766简约中文本参考：
外形外形ATX ATX
处理器CPU Intel酷睿2四核英特尔酷睿2四核
频率高达3.0 GHz的为3.0 GHz，
二级缓存6MB/6MB/2MB/512KB6MB/6MB/2MB/512KB
三级高速缓存 - -
BIOS AMI32兆SPI急性心肌梗死32兆SPI
芯片组Intel Q35+ ICH9 DO英特尔Q35+ ICH9 DO
集成显卡是是
FSB800/1066/1333 MHz的800/1066/1333 MHz的
内存技术DDR2667/800 MHz的DDR2667/800兆赫
容量高达8 GB到8 GB
ECC的支持 - -
插座4个240针UDIMM4×240针UDIMM
显示控制器英特尔GMA3100集成英特尔GMA3100集成
显存共享系统内存高达384 MB共享系统内存高达384 MB
多显示器 - -
显示接口VGA：高达2048 x1536的VGA：高达2048 x1536
扩展接口的PCI Express×1611
的PCI Express× - 4 -
的PCI Express×1 1 1
PCI5
LPC111
以太网控制器LAN1：英特尔82566DM局域网2：英特尔82573L LAN 1：英特尔82566DM
速度10/100/1000 BASE-T10/100/1000 BASE-T
连接器2个RJ451个RJ45
看门狗定时器输出系统复位系统复位
可编程间隔1～255秒可编程1～255秒
I / O的SATA6×SATA II（RAID0，1，5，10）6×SATA II
USB3.0 - -
USB 2.08 8
GPIO - -
LPT - -
COM端口3（2个RS232，1个RS232/422/485），3（2个RS232，1个RS232/422/485）
PS / 2键盘/鼠标 - -
SPDIF - 1
系统风扇22
后置I/ O接口显示11
USB3.0 - -
USB2.0接口4 4
COM1（1×RS232）1（1×RS232）
PS / 2（1×键盘和1×鼠标）2（1×键盘和1个鼠标）
音频2（麦克风输入，线路输出）2（麦克风输入，线路输出）
LPT11
DVI - -
以太网21
VGA11
物理特性外形尺寸（长x宽）304.8点¯x244毫米（12“×9.6”）304.8点¯x244毫米（12“×9.6”）
电磁兼容认证CE，FCC CE，FCC
管理解决方案软件 - -
产品描述获取报价
AIMB-766G2-00A2E的电路板，采用LGA775 C2D的ATX前端总线1333 QuoteBuild
AIMB-766VG-00A2E的电路板，采用LGA775 C2D的ATX前端总线1333 QuoteBuild
支持LGA775酷睿2四核/酷睿2 CPU的ATX主板，支持DDR2/双千兆网络/4COM
