研华FPM-2150G|研华工业显示器介绍:

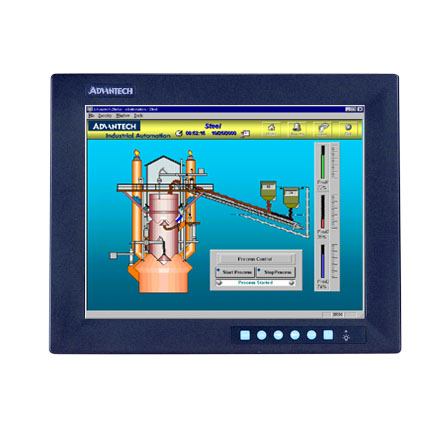

FPM-2150G是一款15” TFT LCD工业平板显示器。它采用铝镁前面板,是15”LCD显示器市场中具竞争力的产品之一。FPM-2150G还采用了轻薄设计,并提供多种工业级功能,如符合NEMA4/IP65标准的前面板、不锈钢机箱、VESA安装灵活性等。FPM-2150G非常适合与工业电脑如IPC-610或IPC- 6806等一起使用。这种组合让您的系统工作更加稳定和可靠,可以在任何工业应用中使用。
详细参数:
FPM-2150G-RCE | FPM-2150G-XCE | ||
---|---|---|---|
Environment | Humidity | 10% ~ 95% non-condensing | 10% ~ 95% non-condensing |
Operating Temperature | 0 ~ 50° C (32 ~ 122° F) | 0 ~ 50° C (32 ~ 122° F) | |
Storage Temperature | -20 ~ 60° C (-4 ~ 140° F) | -20 ~ 60° C (-4 ~ 140° F) | |
Vibration | 5 ~ 500 Hz, 1 Grms (Operating, Random) | 5 ~ 500 Hz, 1 Grms (Operating, Random) | |
Waterproof | Front panel: IP65 | Front panel: IP65 | |
General | Button Controls | OSD (Onscreen Display) control pad on front panel | OSD (Onscreen Display) control pad on front panel |
Certifications | BSMI, CCC, CE, FCC, UL | BSMI, CCC, CE, FCC, UL | |
Dimensions (W x H x D) | 383 x 307 x 48 mm (15" x 12" x 1.9") | 383 x 307 x 48 mm (15" x 12" x 1.9") | |
Enclosure |
Front panel: Aluminum with hard anodizing coating Rear cover : Stainless steel Ground Isolation Protection |
Front panel: Aluminum with hard anodizing coating Rear cover : Stainless steel Ground Isolation Protection |
|
Mounting | Panel, wall, desktop, VESA arm, or 19" rackmount with optional mounting kit | Panel, wall, desktop, VESA arm, or 19" rackmount with optional mounting kit | |
Power Input | External 50 W power adapter, with AC 100 V ~ 240 V, input and DC +12 V @ 4.16 A output | External 50 W power adapter, with AC 100 V ~ 240 V, input and DC +12 V @ 4.16 A output | |
Video Port | VGA | VGA | |
Weight (Net) | 5.60 kg (12.34 lbs) | 5.60 kg (12.34 lbs) | |
LCD Display | Backlight Life (hrs) | 50,000 | 50,000 |
Contrast Ratio | 500 : 1 | 500 : 1 | |
Display Size | 15" | 15" | |
Display Type | XGA TFT LCD | XGA TFT LCD | |
Luminance (cd/m2) | 250 | 250 | |
Max. Colors | 16.2M | 16.2M | |
Max. Resolution | 1024 x 768 | 1024 x 768 | |
Viewing Angle (H/V°) | 140, 130 | 140, 130 | |
Touchscreen (Optional) | Interface | Combo RS-232 & USB interface | Combo RS-232 & USB interface |
Light Transmission | > 80% | > 80% | |
OS Support | Windows® 2000/XP/CE/Vista, Linux | Windows® 2000/XP/CE/Vista, Linux | |
Sensor | AMT | AMT | |
Touch Resolution | Linearity | Linearity | |
Type | 5-wire Resistive | 5-wire Resistive |
产品描述 | Get Quote | |
---|---|---|
FPM-2150G-RCE | FPM-2150G-XCE with Resistive Touchscreen (RS-232 and USB interfaces) | Get Quote |
FPM-2150G-XCE | 15" Industrial Monitor with Direct-VGA port | Get Price |
