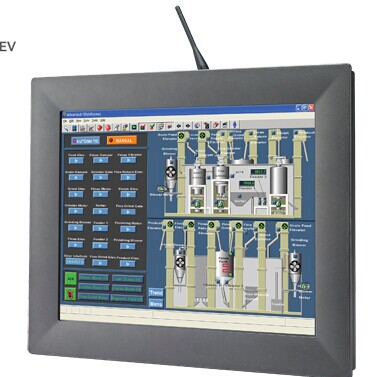

研华15寸工业平板电脑TPC-1571H-D3AE

发布时间:2014-09-24 18:06 作者:南京研维 阅读次数:

研华15寸工业平板电脑TPC-1571H-D3AE

15“ 工业等级嵌入式平板电脑

Main Features
  • 英特尔凌动D525 1.8GHz
  • 丰富的I/O端口,提供多种标准通讯功能,方便连接各种周边设备,适合多种应用
  • 提供PCI-E和Mini PCI-E扩展槽
  • 8路光隔离DI/DO,1MB电池备份内存
  •
  • 研华15寸工业平板电脑TPC-1571H-D3AE产品介绍:
  • TPC-1571H采用了高质量的TFT LCD显示屏,以英特尔凌动D525处理器为核心。英特尔凌动具有很低的功耗,工作频率为1.8GHz。该系统虽然内核强大但采用无风扇设计。此外,TPC-1571H采用了无转动部件的存储方案,是一套持久耐用的可靠平台。对于不需要使用无运动部件的存储应用,可以使用一套能快速安装的硬盘模块。同时它还带有能满足不同需求的丰富的I/O功能。
  • 研华15寸工业平板电脑TPC-1571H-D3AE参数:



  TPC-1571H-D3AE

Display Type XGA TFT LED LCD
Viewing Angle (H/V°) 160/140
Backlight Life (hrs) 50,000 hrs
Luminance (cd/m2) 350
Size 12.1"
Max. Resolution 1024 x 768
Max. Colors 262 K
Contrast Ratio 700 : 1
General Power Consumption 21 W (typical)
Power Input 10~29 VDC
Watchdog Timer 1 ~ 255 sec (system)
Mounting Desktop, Wall or Panel Mount
Certifications BSMI, CCC, CE, FCC Class A, UL
Dimensions 383 x 307 x 78.5 mm (15.08" x 12.09" x 3.09")
BIOS AMI 8Mbit
Cooling System Fanless design
Enclosure Housing Front bezel: Die-cast Aluminum alloy, Back housing: PC/ABS Resin
OS Support Microsoft® Windows® 7/XPE/WES/Windows CE 6.0
Weight (Net) 5.5 kg (12.13 lbs)
System Hardware CPU Intel® Atom™ D525 1.8 GHz with 1MB cache
Memory 4GB SO-DIMM DDR3 SDRAM
Storage CompactFlash® slot x 1, 2.5" SATA HDD x 1(optional)
Chipset ICH8M
LAN 10/100/1000Base-T x 2
I/O RS-232 x 2 with isolation, RS-422/485 x 1 with isolation and auto data flow control, USB 2.0 x 2 (Host), PS/2 x 1
Expansion Slots Half-size PCI-E or full-size Mini PCI-E
DI/DO & Backup SRAM 8 x DI/DO with isolation and backup 1MB SRAM
Environment Temperature (Operating) 0 ~ 55°C (32 ~ 131°F)
Temperature (Storage) -20 ~ 60° C (-4 ~ 140° F)
Humidity (Operating) 10 ~ 95% RH @ 40° C, non-condensing
Ingress Protection Front panel:IP65
Vibration Protection With HDD: 1 Grms (5 ~ 500 Hz)
Touchscreen Lifespan 10 million touches at single point
Light Transmission Above 75%
Resolution Linearity
Touch Type 5-wire, analog resistive
