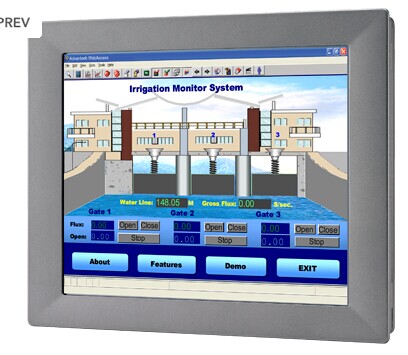

研华TPC-1250H-N2BE 12寸无风扇工业平板电脑
TPC-1250H-N2BE | ||
---|---|---|
Display | Type | SVGA TFT LED LCD |
Viewing Angle (H/V°) | 160/140 | |
Backlight Life (hrs) | 50,000 hrs | |
Luminance (cd/m2) | 450 | |
Size | 12.1" | |
Max. Resolution | 800 x 600 | |
Max. Colors | 262 K | |
Contrast Ratio | 700 : 1 | |
General | Power Consumption | 35 W (typical) |
Power Input | 18 ~ 28 VDC | |
Watchdog Timer | 1 ~ 255 sec (system) | |
Mounting | Desktop, Wall or Panel Mount | |
Certifications | BSMI, CCC, CE, FCC Class A, UL | |
Dimensions | 311 x 237 x 54 mm (12.24" x 9.33" x 2.13") | |
BIOS | Award® 4 MB | |
Cooling System | Fanless design | |
Enclosure Housing | Front bezel: Die-cast Aluminum alloy, Back housing: SECC | |
OS Support | Microsoft® Windows® 7/XPE/WESWindows CE 5.0/6.0 | |
Weight (Net) | 2.5 kg (5.51 lbs) | |
System Hardware | CPU | Intel® Atom™ N270 1.6 GHz |
Memory | 2GB SO-DIMM DDR2 667 SDRAM | |
Storage | CFast slot x 1, Optional, external 2.5" SATA HDD kit | |
Chipset | Intel® 945GSE+ICH7M | |
LAN | 10/100/1000Base-T x 2 | |
I/O | RS-232 x1, RS-232/422/485 x 1, USB 2.0 x 2 (Host) | |
Environment | Temperature (Operating) | 0 ~ 55°C (32 ~ 131°F) |
Temperature (Storage) | -20 ~ 60° C (-4 ~ 140° F) | |
Humidity (Operating) | 10 ~ 95% RH @ 40° C, non-condensing | |
Ingress Protection | Front panel: IP65 | |
Vibration Protection | 2 Grms (5 ~ 500 Hz) | |
Touchscreen | Lifespan | 10 million touches at single point |
Light Transmission | Above 75% | |
Resolution | Linearity | |
Touch Type | 5-wire, analog resistive |
